Our Products
Explore our comprehensive range of premium UPVC profiles designed to enhance the aesthetics and functionality of your spaces.

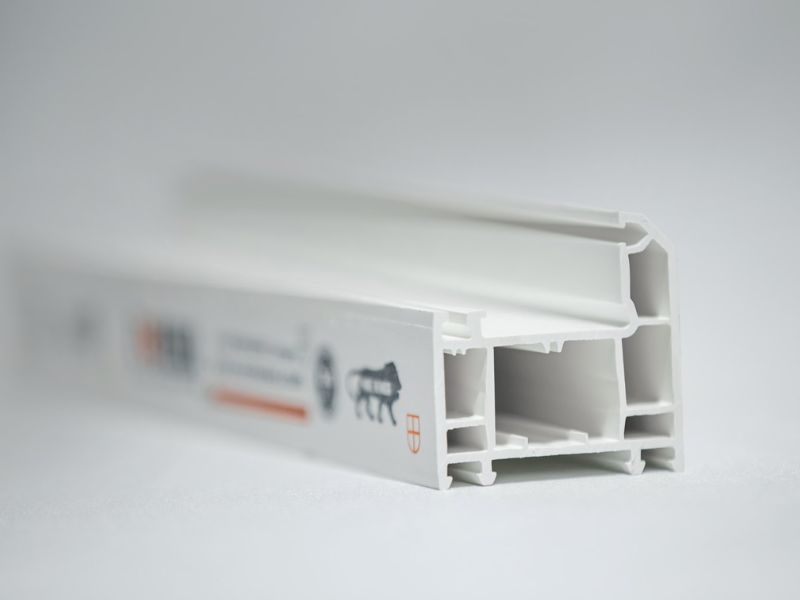

60 Casement Door Profiles
High-performance 2.5mm thick profiles for residential windows with excellent thermal and acoustic insulation.Thickness: 2.5mm
Series: 60
View Details

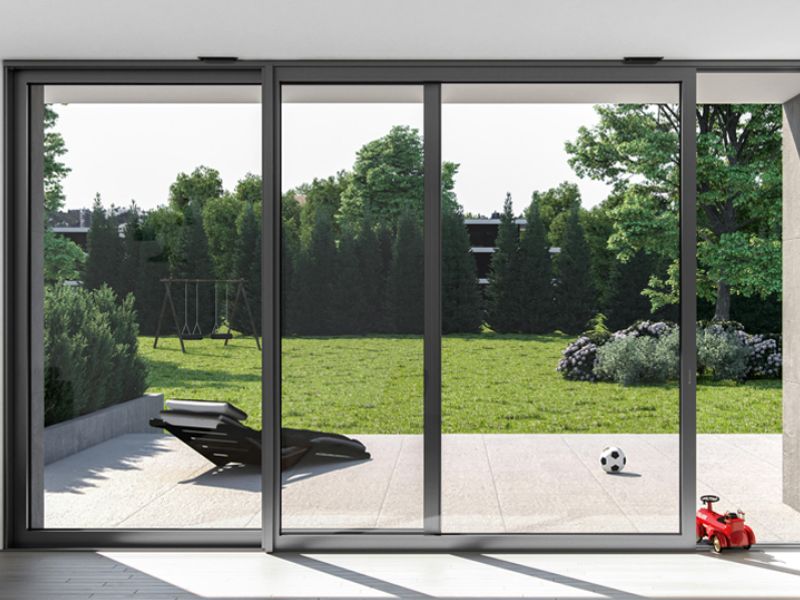

60 Series Sliding Profiles
Precision-engineered 2.5mm thick profiles for smooth operating sliding doors and windows with enhanced durability.Thickness: 2.5mm
Series: 60
View Details

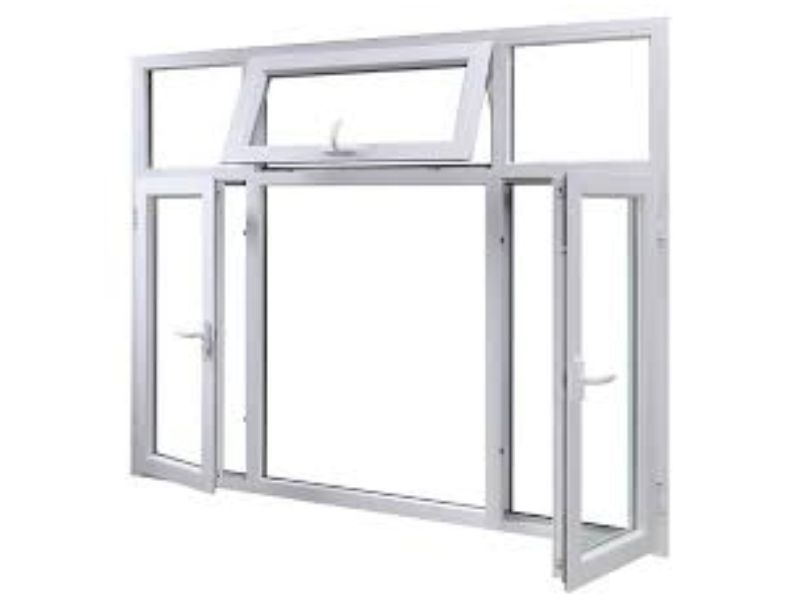

88 Series Sliding Profiles
Premium 3.0mm thick profiles for larger openings with enhanced structural stability and weather resistance.Thickness: 3.0mm
Series: 88
View Details

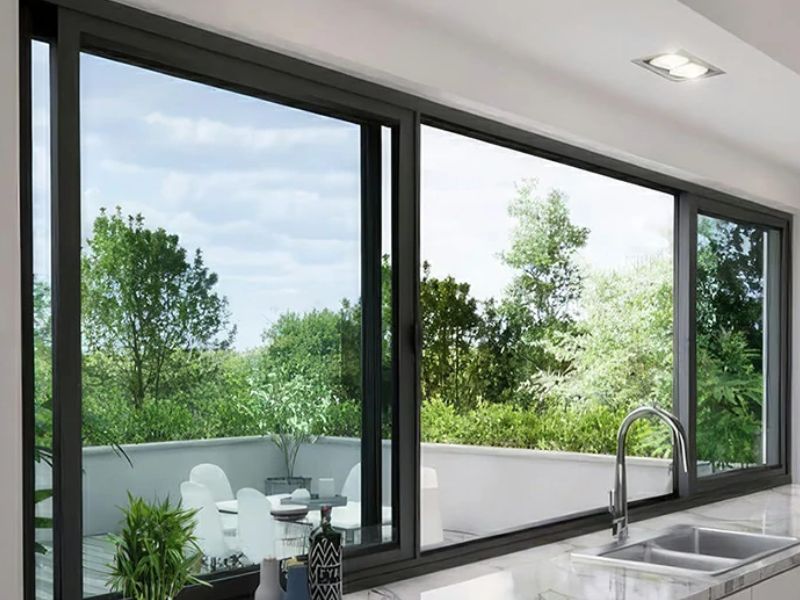

Villa Series (Casement Big Series)
Specialized profiles for larger openings with superior load-bearing capacity for premium residential applications.Premium Series
High Strength
View Details

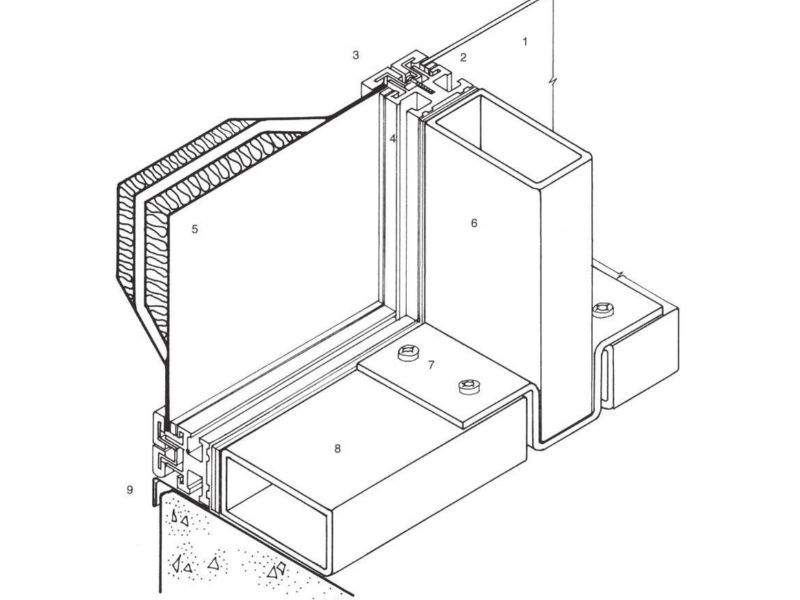

Casement Frame Profile
Robust frame profile with 2.5mm wall thickness and 60mm depth for excellent structural integrity.Depth: 60mm
Weight: 1.53 kg/m
View Details

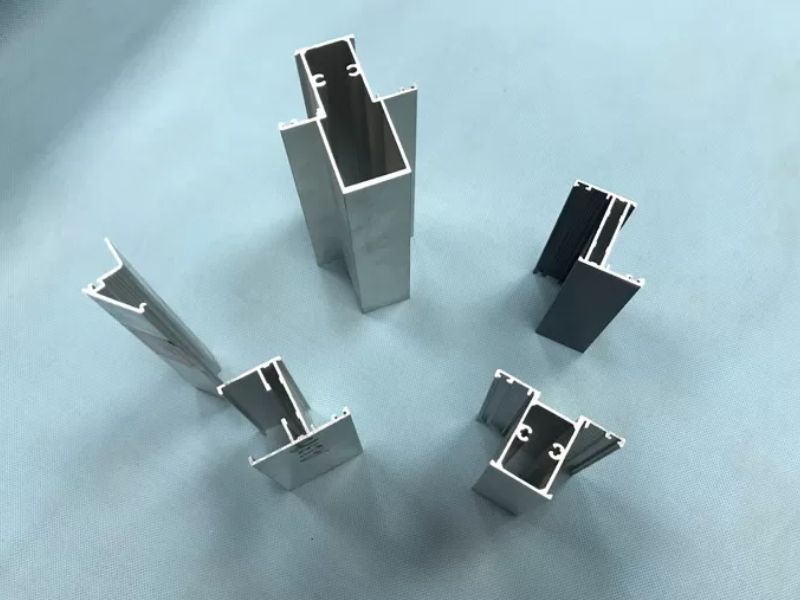

Casement Mullion Profile
Heavy-duty mullion profile for joining two window frames with superior strength and stability.Depth: 60mm
Weight: 1.87 kg/m
View Details
Casement Sash Profile
Precision-engineered sash profile for smooth operation and excellent sealing properties.Depth: 60mm
Weight: 1.65 kg/m
View Details

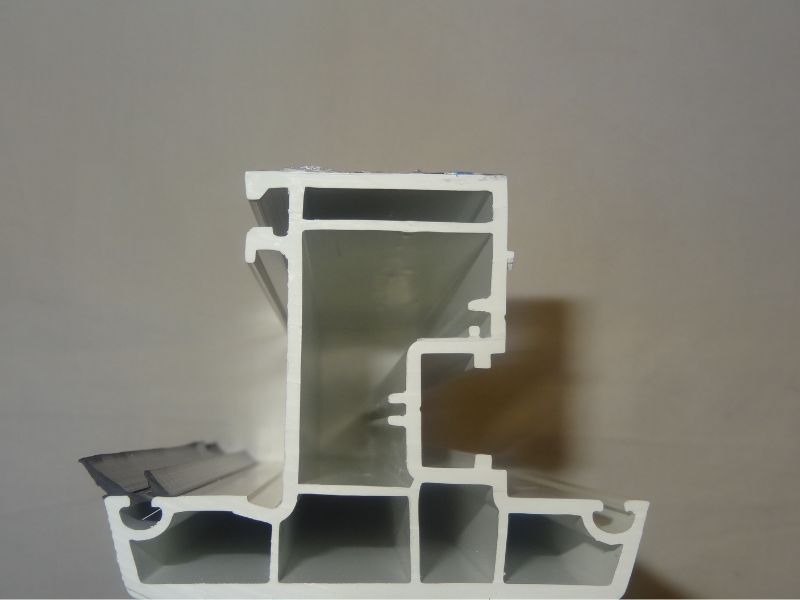

Casement Transom Profile
Horizontal reinforcement profile for dividing window sections with excellent load-bearing capacity.Depth: 60mm
Weight: 1.92 kg/m
View Details

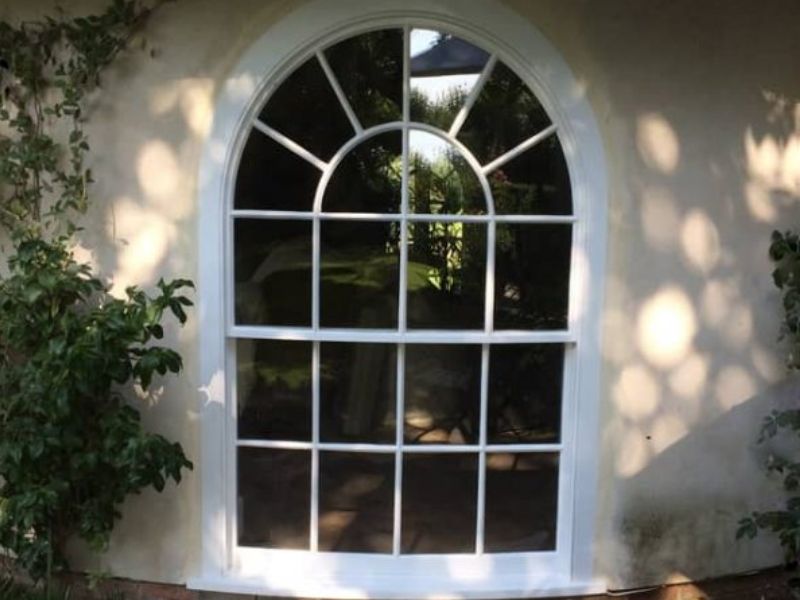

Curved Sash With Sash
Specialized profile for curved window applications with integrated sash design.Depth: 60mm
Weight: 1.67 kg/m
View Details

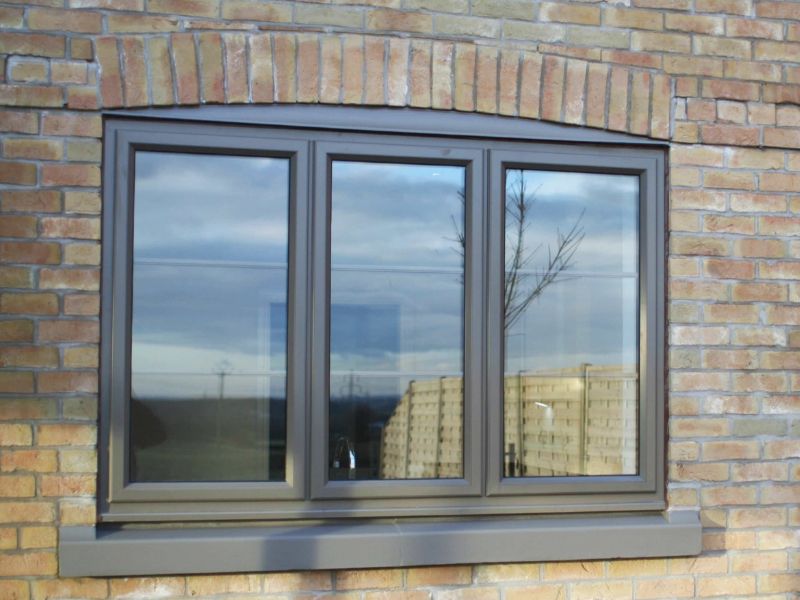

Outward Window Sash
Specially designed sash profile for outward opening windows with superior weather resistance.Depth: 60mm
Weight: 1.65 kg/m
View Details

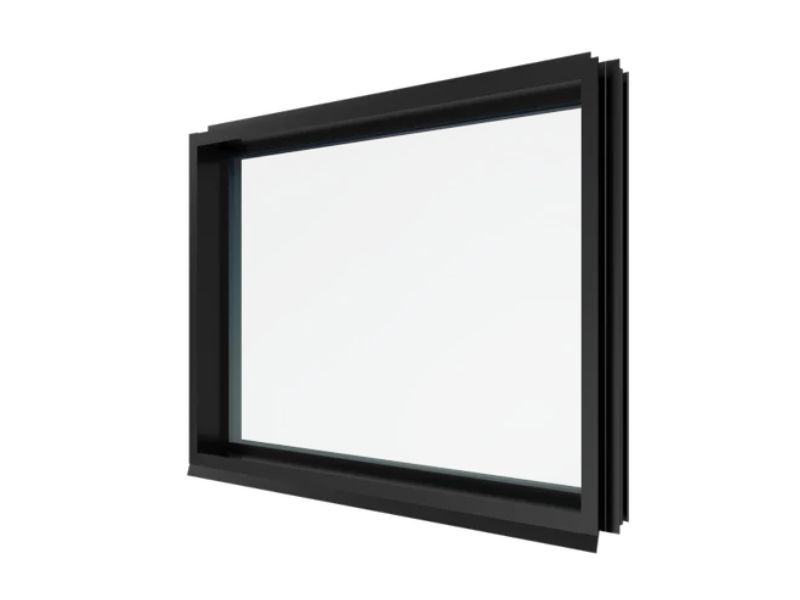

Fixed Profile
Lightweight profile for fixed windows offering maximum glass area with excellent thermal insulation.Depth: 60mm
Weight: 0.57 kg/m
View Details

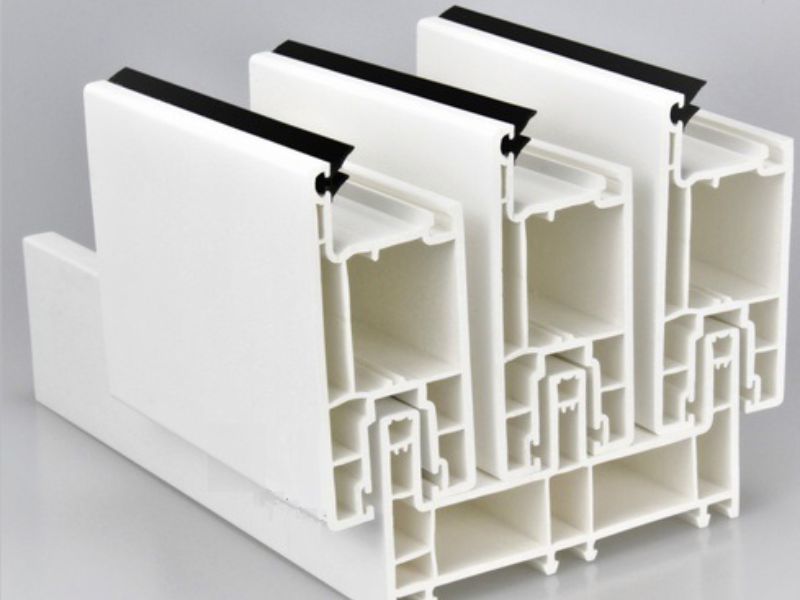

Door Panel Profile
Heavy-duty door panel profile with reinforced construction for enhanced security and durability.Depth: 60mm
Weight: 3.05 kg/m
View Details

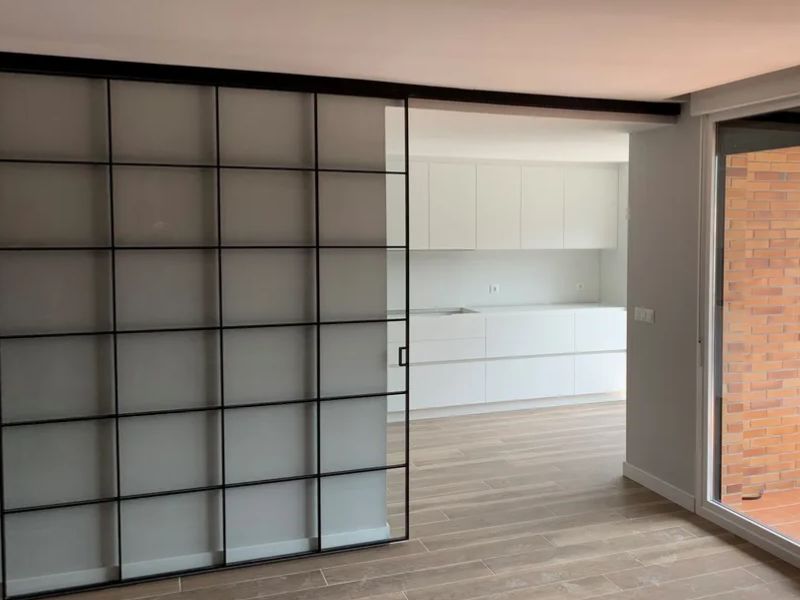

Sliding Frame Profile
Specialized frame profile for sliding windows and doors with integrated track system.Depth: 60mm
Weight: 1.58 kg/m
View Details

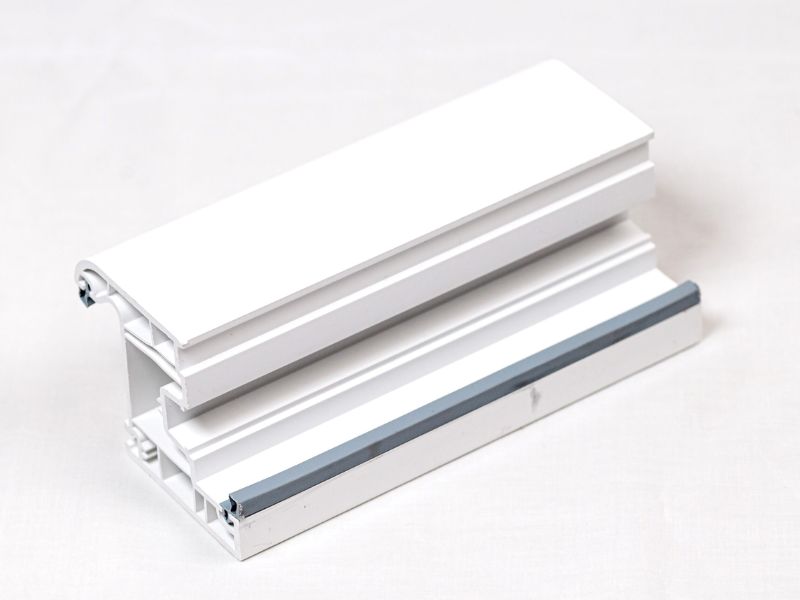

Sliding Sash Profile
Precision-engineered sash profile for sliding systems with smooth operation and excellent weather sealing.Depth: 25mm
Weight: 1.62 kg/m
View Details

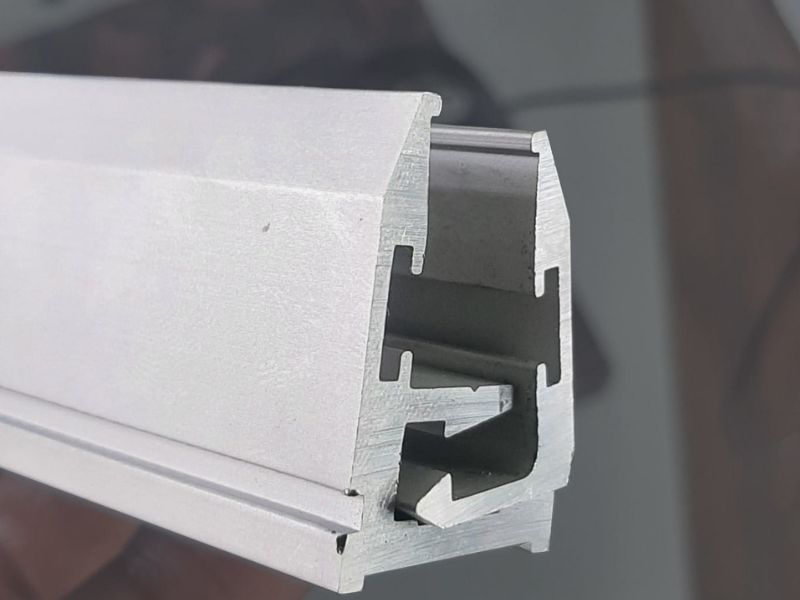

Interlock Profile
Special profile designed for secure interlocking of sliding sashes with excellent air and water tightness.Depth: 40mm
Weight: 0.75 kg/m
View Details
Sliding Rail Profile
Heavy-duty rail profile for sliding door systems designed for smooth, quiet operation with minimal friction.Depth: 60mm
Weight: 1.78 kg/m
View Details

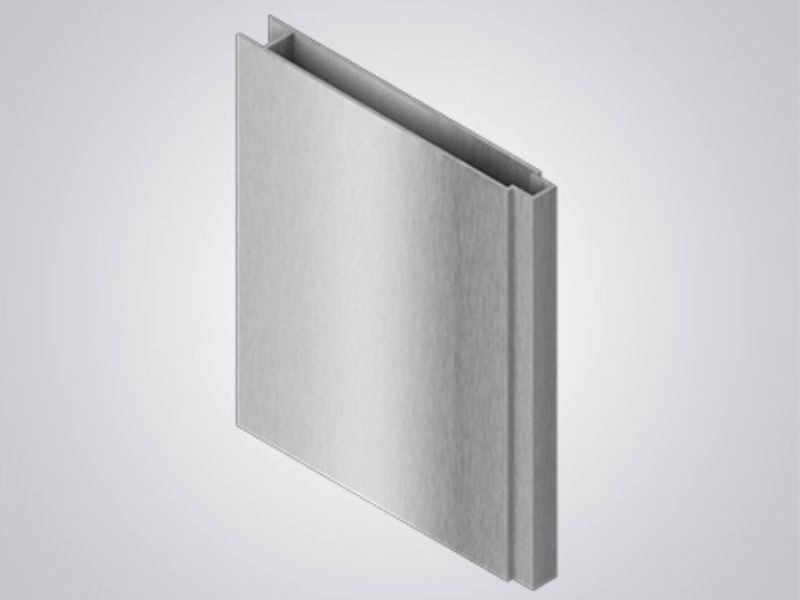

Auxiliary Profiles
Comprehensive range of complementary profiles including couplers, extensions, reducers, and reinforcements.Compatible with all series
Multiple applications
View Details

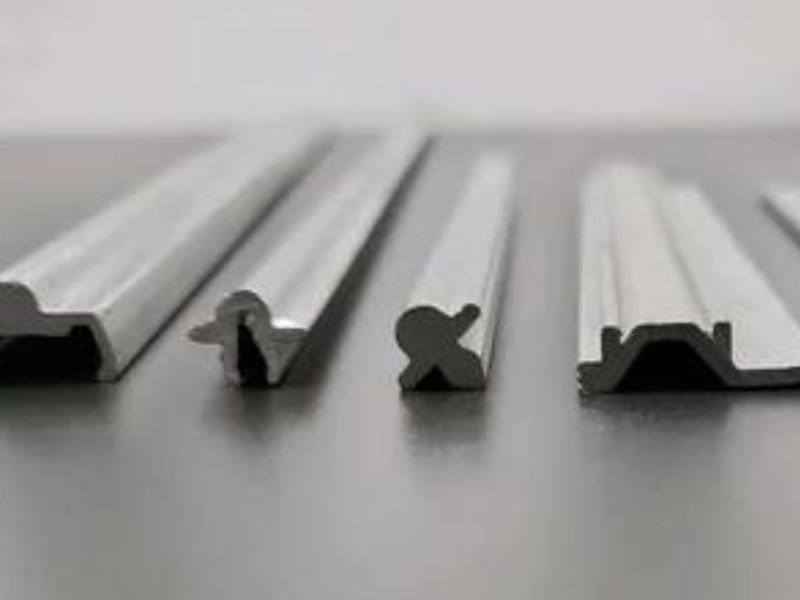

Coupling Profile
Specialized profile for connecting multiple frames together with excellent structural integrity.Length: 60mm
Weight: 0.95 kg/m
View Details

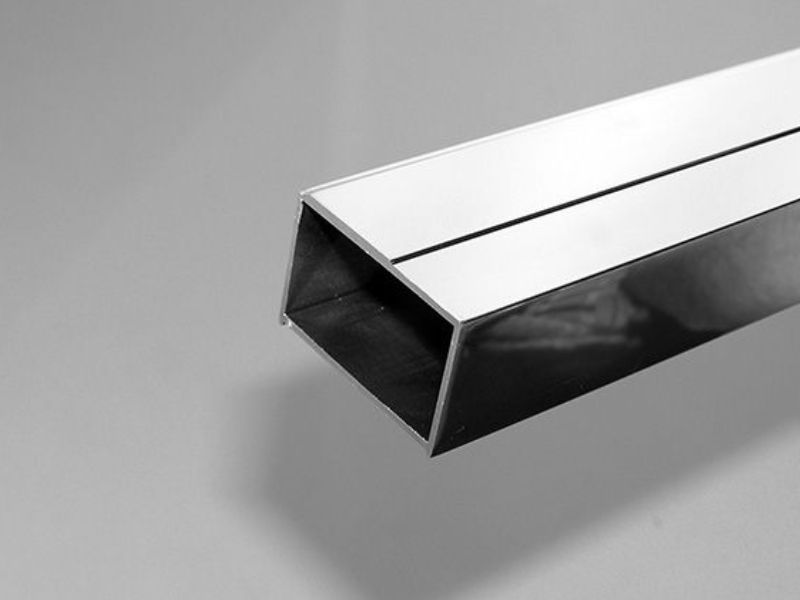

Extension Profile
Adaptable profile for extending frames to accommodate varying wall thicknesses or installation requirements.Length: 40mm
Weight: 0.65 kg/m
View Details

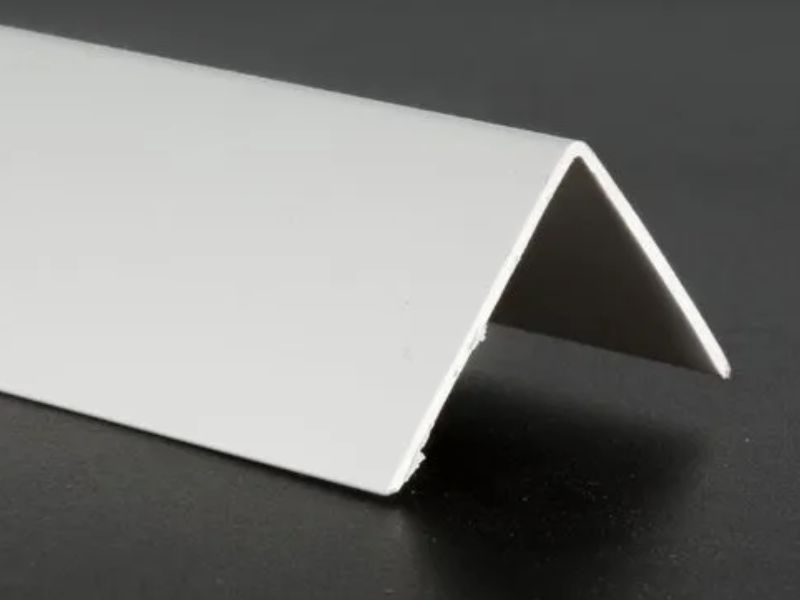

Angle Profile
Versatile 90-degree angled profile for corner connections and structural reinforcement.Length: 60/60mm
Weight: 0.85 kg/m
View Details
Glazing Beads & Accessories
Precision manufactured components for doors and windows to ensure installations with optimum fitment and finish.Multiple options
Superior finish
View Details

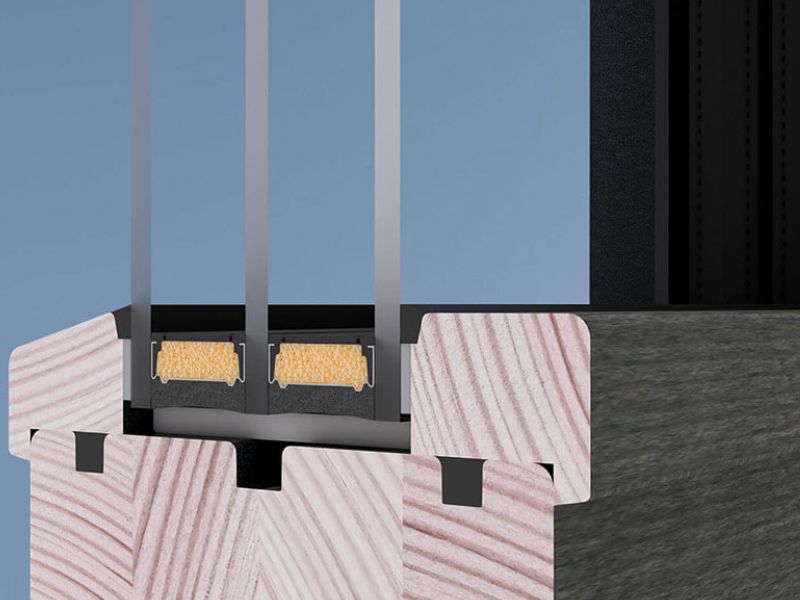

Glazing Bead
Precision-engineered beading profiles for secure glass installation with clean, elegant finish.Length: 25mm
Weight: 0.35 kg/m
View Details
Door Glass Bead
Heavy-duty glazing bead specifically designed for door applications with enhanced security features.Length: 20mm
Weight: 0.086 kg/m
View Details
Technical Specifications
Frame
- Depth: 60 mm
- Wall Thickness: 2.5 mm
- Weight: 1.53 kg/m
- End to Face: 56 mm
Mullion
- Depth: 60 mm
- Wall Thickness: 2.5 mm
- Weight: 1.87 kg/m
- End to Face: 60 mm
Sash
- Depth: 60 mm
- Wall Thickness: 2.5 mm
- Weight: 1.65 kg/m
- End to Face: 56 mm
Transom
- Depth: 60 mm
- Wall Thickness: 2.5 mm
- Weight: 1.92 kg/m
- End to Face: 60 mm
2-Mullion
- Depth: 60 mm
- Wall Thickness: 2.5 mm
- Weight: 1.92 kg/m
- End to Face: 60 mm
Outward Window Sash
- Depth: 60 mm
- Wall Thickness: 2.5 mm
- Weight: 1.65 kg/m
- End to Face: 60 mm
Door Panel Profile
- Depth: 60 mm
- Wall Thickness: 2.5 mm
- Weight: 3.05 kg/m
Glass Beads
- Multiple types available
- Weight: 0.075-0.086 kg/m
- End to Face: 9 mm
Frame
- Depth: 60 mm
- Wall Thickness: 2.5 mm
- Weight: 1.58 kg/m
- End to Face: 60 mm
Interlock
- Depth: 40 mm
- Wall Thickness: 2.5 mm
- Weight: 0.75 kg/m
- End to Face: 22 mm
Sash
- Depth: 25 mm
- Wall Thickness: 2.5 mm
- Weight: 1.62 kg/m
- End to Face: 60 mm
Rail
- Depth: 60 mm
- Wall Thickness: 2.5 mm
- Weight: 1.78 kg/m
88 Series Frame
- Depth: 88 mm
- Wall Thickness: 3.0 mm
- Superior Strength
Coupling
- Length: 60 mm
- Wall Thickness: 2.5 mm
- Weight: 0.95 kg/m
Extension
- Length: 40 mm
- Wall Thickness: 2.5 mm
- Weight: 0.65 kg/m
Angle Profile
- Length: 60/60 mm
- Wall Thickness: 2.5 mm
- Weight: 0.85 kg/m
Glazing Bead
- Length: 25 mm
- Wall Thickness: 2.0 mm
- Weight: 0.35 kg/m
Villa Profile
- Premium construction
- Enhanced wall thickness
- Superior load capacity
Villa Mullion
- Larger dimensions
- Enhanced strength
- Premium finish
Villa Sash
- Designed for larger openings
- Extra reinforcement capacity
- Luxurious appearance
GI-100
- Size: 33.5 x 21 mm
- Galvanized steel
- For frame reinforcement
GI-150
- Size: 31.5 x 36 mm
- Galvanized steel
- For mullion reinforcement
GI-200
- Size: 25 x 38 mm
- Galvanized steel
- For sash reinforcement
GI-250
- Size: 42 x 20 mm
- Galvanized steel
- For transom reinforcement
